Type 5 Steam Chemical Integrator

Type 5 Chemical Integrators are the indicators which give proximate result to the biological indicator and they operate in direct proportion to biological death. This product that is used in a package during steam sterilization process consists of the chemical mixture which is on the part of the acceptance area if the sterilization is successful and on the part of reject area if the sterilization fails. There is no reference color in integrators, and the results can be interpreted according to the mixture migrating through the window.

Product Code: 4AC5IN

TYPE 5 STEAM CHEMICAL INTEGRATOR

PRODUCT CODE
4AC5INT

RELATED STANDARDS
4A Medical Steam Integrator is classified as Type 5 according to ISO 11140-1 standard.

INTENDED USE
A Medical Steam Integrator are cycle verification indicators that confirm the presence or absence of specific time and temperature and saturated steam parameters during a cycle. The products allows the end user to identify incorrect packaging, load problems and sterilization failures.

OPERATION CONDITIONS

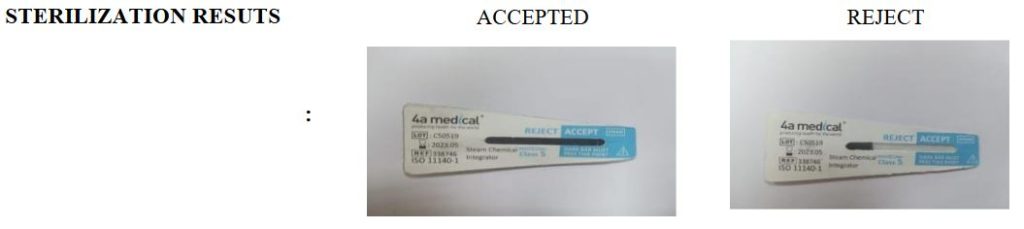

4A Medical Steam Integrators are designed operate at steam cycle 121°C and 134ºC operation conditions. When the Integrator is placed in a sterilizer together with the load and sterilization conditions are met the ink is changing from solid into a liquid which is slowly absorbed by a strip over time. If accepted point is passed then sterilization is successful if it doesn’t pass accepted point then sterilization is not successful.

PRODUCT SPECIFICATIONS
The indicator is temperature, time and saturated steam concentration sensitive.

STORAGE AND DISPOSAL
The expired products are not used. It’s kept in the places with room temperature
without humidity and sun lights. It shouldn’t be in contact with liquid. Damaged
and defective products are not used. Shelf life is 4 years after prodcution date.

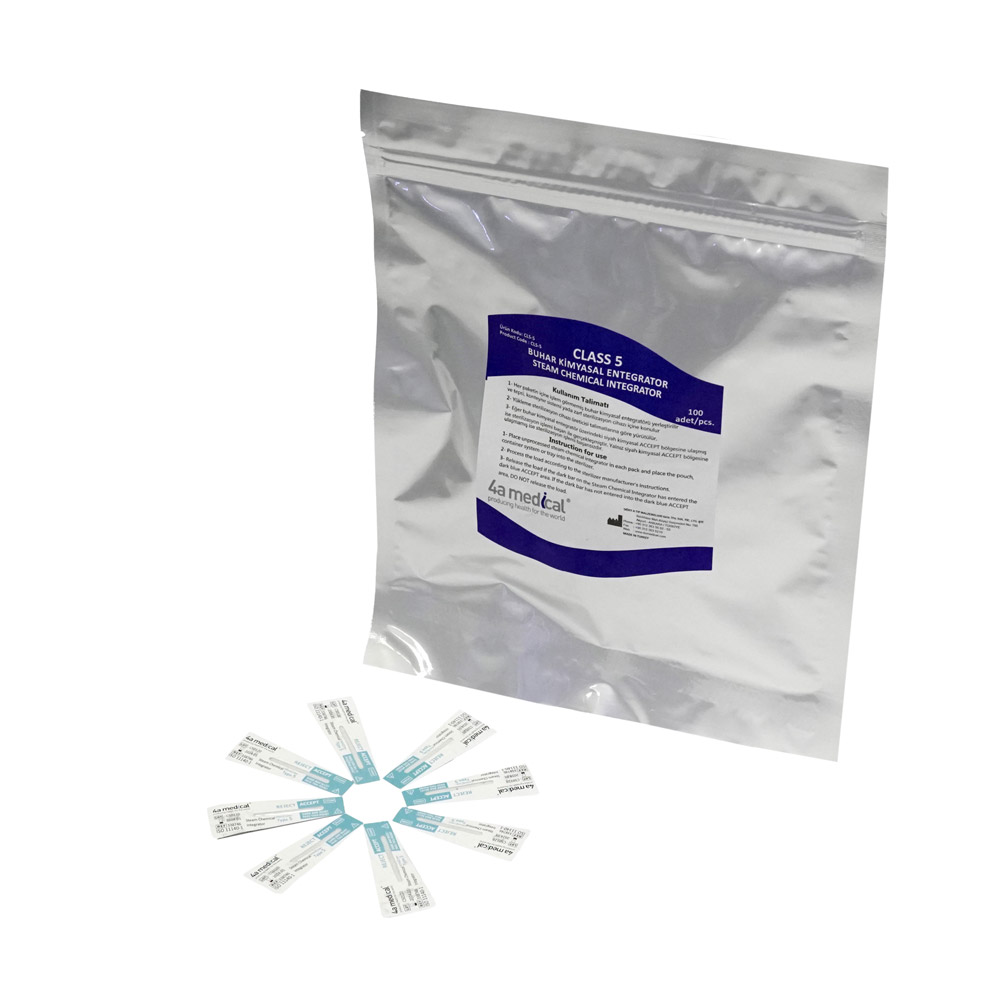

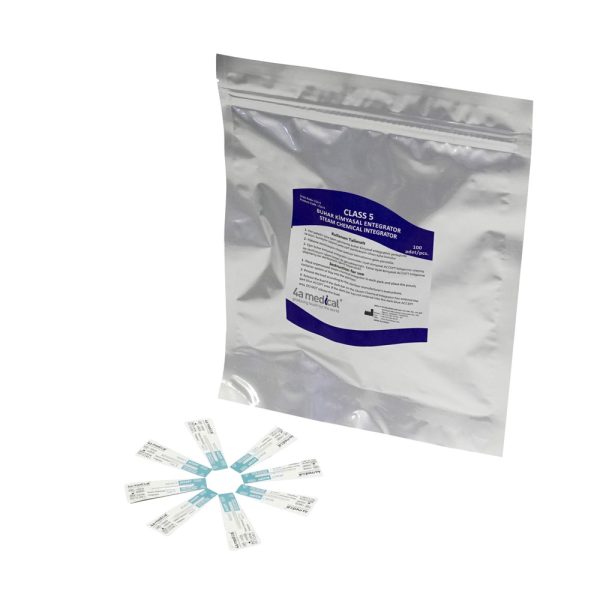

PACKAGING
Packing contains 250 pieces of integrator. There is 20 pack in one cardboard.
